Warehouse Pneumatic Inflatable Dock Shelter Long Using Life High Tensile Strength

Warehouse Pneumatic Inflatable Dock Shelter Long Using Life High Tensile Strength

Product Details:

Place of Origin: CHINA
Brand Name: DESEO
Certification: CE/ISO 9001
Model Number: IDS3600

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD 1600/unit
Packaging Details: plywood package
Delivery Time: 7-20 days
Payment Terms: T/T
Supply Ability: 200 unit per month
Get Best Price Contact Now

Detail Information

Surface Finishing: Finished Type: Entry Doors,Security Doors,Garage Doors
Open Style: Automatic,R/C & Manual Position: Garage/Commercial Shop/factory/warehouse
Product Name: Industrial Dock Seal Dock Shelter Size: Customized Size
High Light:

retractable dock shelter

,

dock seals and shelters

Product Description

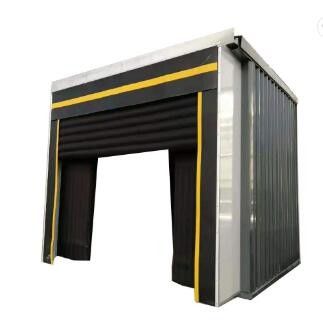

​DESEO Inflatable Dock Shelters are designed to always ensure an optimal seal during the loading and unloading process. The inflatable dock shelters are provided with an inflatable coupling system using an air turbine. They include a single phase low pressure fan and an elastic unit to bring the dock shelter back to its initial position.and providing greater interior hygiene, always without affecting the comfort and flexibility of the manoeuvre.



  • High strength U shape bridge design can ensure longtime high loading without deformation.
  • The antiskid checkered steel plate design endows the platform with the excellent antiskid property.
  • Equipped with supporting bar can ensure the safety of the maintenance man when he goes into the yard ramp.
  • Electric operation is extremely simple and safe for the operator. when the vehicle is in position, just press the button, adjusting plate will automatically rise; loosen the button, adjusting plate will descend by the own weight.





1. The biggest difference between the economical inflatable door seal and the luxurious inflatable door seal is material and the process of the balloon pocket.

2. The economical airbags are made of polyester cloth with a thickness of 0.6 MM, while the luxury is made of PVC mesh cloth with a thickness of 0.9 MM.

3. The economical interior frame panel is a foam core panel, and the luxury is a polyurethane foaming door panel. Other configurations are the same as luxury inflatable door seals.

4. It is suitable for the loading and unloading port with high sealing requirements, and is the best choice for cold storage, garbage loading and unloading port and other places.





Technical data



Extension length of the top air bag 900(1200)
Extension length of the side bags 600
Top PVC cover 500
Side PVC cover 200
Color of the aluminum profile Silver Grey
voltage 220/380,50Hz
power 0.18-0.35kw
material of the air cushion Cordura 1000
thickness of the air cushion
