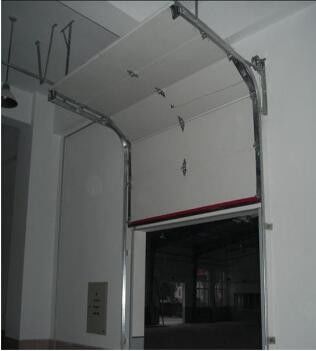

Steel Insulated Sectional Doors 220V/380V Automatic Remote Controlled
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001:2008 |
| Model Number: | SD4600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 800/UNIT |
| Packaging Details: | plywood package |
| Delivery Time: | 7-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 unit per month |
|
Detail Information |
|||
| Open Style: | Automatic,Rolling,Remote Control & Manual | Surface Finishing: | Finished |
|---|---|---|---|
| Position: | Industrial,Garage,Exterior,Commercial | Color: | Custom |
| Size: | Customized Size | Application: | Warehouse,Garage,Industrial |
| Name: | Industrial Sectional Door | ||
| High Light: | sectional overhead door,sectional garage doors |
||
Product Description
Finger Protection
Safety is important to today's homeowner. As your door closes, the exclusive finger protection system gently pushes fingers away from section joints.
High Strength & Resistance Material
Due to heavy-duty exterior and interior steel, polymeric coating keeps the door nice appearance, low maintenance, durable and reliable.
Air Tightness
The sealing system between door panels and around the door leaf increases the air tightness, prevents heat loss and blocks airflow between sections.
Feature:
- Copper Color, NEW & ELEGANT LOOK.
- Door panel fingr protection patent designed. Saftey use.
- Design with the Small Window & small door is available.
- Easy installation. Our doors has pre-installed & tested in our factory.
- Self-locking while the power off. Saves our worry on the safety even when the power get cut off.
- Quality guaranteed. Our industrial door workshop & products are CE certificated.
Technical Data:
| Material options |
1. 304 STAINLESS STEEL 0.38mm-0.48mm 2. Aluminum material door panel with polyethene foam filled 3. Galvanized steel plate, with any ral color |
| Door panel height | 450mm & 550mm |
| Normal Color | Porcelain white, light gray,coffee color and stainless steel color, or any Ral color. |
| Rail & Fitting |
Hot dip galvanized steel rail and galvanized bracket & hinges. Aluminum powder coated 2.8mm thick rail is also optional. |
| Sealing | With full sealed, weather resistance & well protection & soundproof. |
| Control |
Automatic & remote controlled. Power rate: 220V/380V |
| Feature for door motorized system | Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation. |
| Certification | ISO & CE certificated. |
No. of revolutions: 24 rpm
Protection class: IP 54
Limit Switch: Electronical
Door opening speed: 0.20 meter/second
Filling: Polyurethene PUR 25-60-25-100% HFCKW free
Heat Transfer Coefficient1 (U): 1.0 W/m2K
Heat resistance of the panel: 1.484 m2 K/W
R Value; 1.66
K Value of the panel: 0.604 W/m2K
Sound insulation value of the panel: 26DB
