0.6mm 48kg/M3 Sandwiches Insulated Sectional Doors EPDM Rubber Sealing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001:2008 |
| Model Number: | SD4600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 800/UNIT |
| Packaging Details: | plywood package |
| Delivery Time: | 7-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 unit per month |
|
Detail Information |
|||
| Type: | Garage Doors,Security Doors,industrial Door | Open Style: | Automatic |
|---|---|---|---|
| Surface Finishing: | Finished | Color: | Requirement |
| Product Name: | Overhead Insulated Garage Door | Size: | Custom Made |
| High Light: | sandwiches Insulated Sectional Doors,sandwiches Insulated Garage Door,0.6mm Insulated Sectional Doors |
||
Product Description
Technical Data:
| Item | Description |
| Material | SUS304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 0.2-0.4m / s |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |

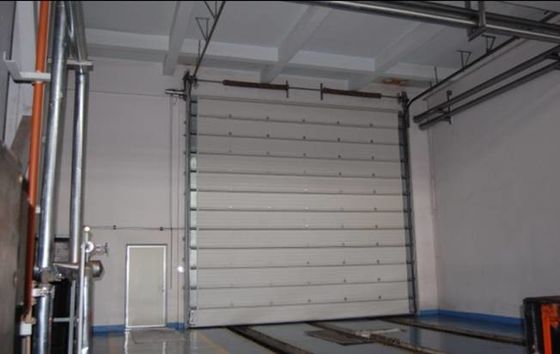

high performance color coated steel material thermal Insulated Sectional Door
Application Scope:
The industrial sectional door is applied to the outdoor passage,logistics center and external door of factory.
Main Features:
Automatic,security,heat preservation,torsion spring balance system.
