Product Details:

Place of Origin: CHINA
Brand Name: DESEO
Certification: CE/ISO9001
Model Number: HFD3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD 2000/UNIT
Packaging Details: plywood package
Delivery Time: 7-20 days
Payment Terms: T/T
Supply Ability: 200 unit per month
Get Best Price Contact Now

Detail Information

Color: White, Red, Yellow, Blue, Orange Etc. Apperance: Luxury
Surface Finishing:: Finished Opening&close Speed:: 0.5-1.5m/s
High Light:

high speed roll up freezer doors

,

high speed fabric roll up doors

Product Description

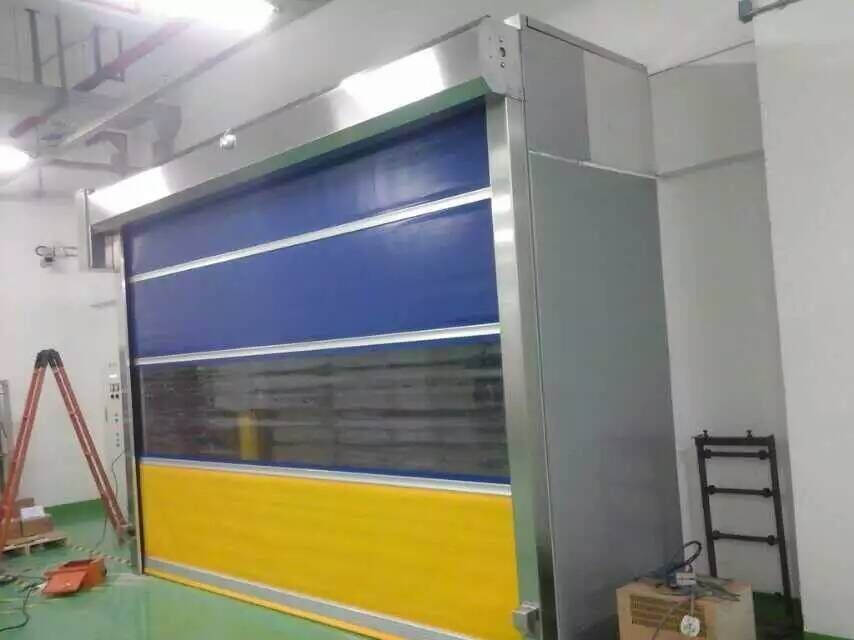

Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 0



Insulated high speed door curtain are made of pvc fabric with rockwool inside,  the finished thickness is 26mm,  it can keep the temperature inside very well so they widely used for cold storage plants and food industry.  Normal working temperature is -35℃~+70℃.



The environments we have provided solutions to include:


1.Food Pharmaceutical
2. Bio-technology
3. Medical device manufacturing
4. Cosmetics
5. Refrigeration
6. Precision manufacturers
7. Chemical
8. Clean workshops
9. Electronics
10. Automotive
11. Air shower
12. Car wash
13. Supermarket
And so on



Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 1



Technology Category: Technical Paramerers
Useage: Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places.
Size: Maximum size:W6000*H6000mm exceed this range according to the site specific production process.
Wind strength: Wind resistance of up to 1176pa.
Opening&close speed: 0.5-1.5m/s
Color curtains: Red , orange , yellow , green , blue , black , gray ,transparent.
Structural material: 1.5mm thick cole rolled steel or 1.5mm thick staninless steel.
Drive System: 220V/380V 50Hz IP55 power 0.55KW-6.5KW
Door Control System: PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder.
Optional: Geomagnetism,radar,light curtain,infrared,remote control or by hand switch.

Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 2

DESEO offers the most extensive line of durable and dependable refrigeration room doors which can be used for a variety of
applications in many different industries. With our many years of experience and excellent customer service, we can
provide solutions to meet any of your material handling needs.



Our product are exported mainly to Europe, Americal, UAE,South Africa. We has developed very quickly for its continuous products innovation,wide products range,very competitive price, on-time deliveries,extensive marketing and strong techincal support.



Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 3

We offers a full line of refrigeration room doors for walk-in coolers to drive-in freezers. Our high speed freezer doors
for the cold storage and freezer industries have the ability to maintain temperatures as low as -22 degrees. The
refrigeration room doors open and close at high speed and soft bottom edges for safety purposes.

Heaters and blowers can also be installed to freezer doors to prevent condensation that could cause dangerous icing
on the floors.



Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 4

Features
1)Safety
radar sensor,photo sensor,air safety bag include

2)Tightness
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.

3)Power
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW

4)Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day

5)Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.

6)Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish



Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 5

Easy Operating Clean Room Rapid Roller Doors Fast Roll Up Doors Rapid Roller Shutter Doors 6
