Product Details:

Place of Origin: CHINA
Brand Name: DESEO
Certification: CE/ISO9001:2008
Model Number: SD2600

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD 800/UNIT
Packaging Details: plywood package
Delivery Time: 7-20 days
Payment Terms: T/T
Supply Ability: 200 unit per month
Get Best Price Contact Now

Detail Information

Open Style: Automatic Type: Garage Doors
Door Material: Steel Surface Finishing: Finished
Position: Garage Color: Requirement
High Light:

sectional overhead garage door


commercial sectional doors

Product Description

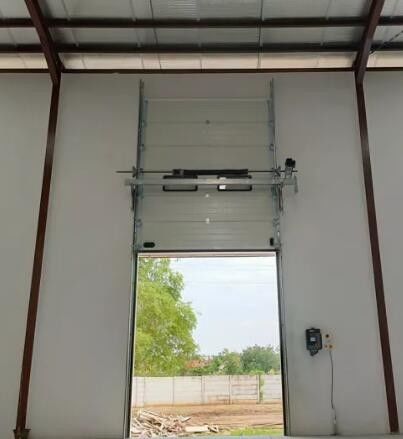

Industrial Overhead Sectional Door:
It is one of most widely used industrial doors at present. Every factory can use such doors because its higher running
speed, high operation frequency, good thermal insulation, and low maintenance,compared with tradtional roller doors.



Product Application

industrial insulated sectional door,industrial overhead doors,overhead sectional door

Industrial insulated overhead sectional door​ is a high-quality, heavy-duty insulated door that provides protection against heat and cold environments. A wide array of options allow these doors to meet the most project requirements that call for a degree of thermal efficiency.


Product specification :

Product name: Insulate Door Panel
Material Galvanized stell + Polyurethane foam
Door plank grain Stripes/squares
Max Door panels length: 8000mm
Max Door panels width: 420mm-530mm
Max Door Panels Thickness: 50mm~80mm



Overhead sectional doors are closures where the door leaf panels are sandwiched into a rail system fitted in the available space”above your head”.there are different types of rail systems which can be used with overhead doors.the choice of installation will depend on the building and the space available.it have standard lift, vertical lift and high lift three different lift way.



CE-Approved Industrial Sectional Overhead Vertical Door

Product Description
Applicable door opening Maximum width 9000/Maximum height 8000
Working voltage /frequency 380v/50HZ
Motor power 180W,380W
Thickness of door panel 40mm,50mm
Heat transfer coefficient K≤0.8/m2.K
Sound insulation property 23bd
Applicable temperature -40℃-50℃
Resistance to wind pressure

450N/m2(With windproof reinforcement,

having resistance to wind pressure,

650N/m2 in resistance to wind pressure)

Operating speed 0.2m/s
