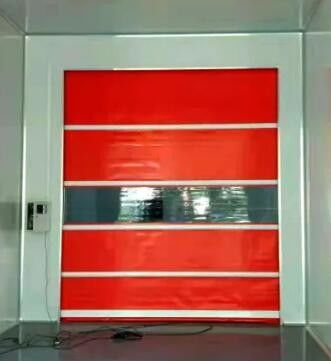

Industry Pvc Roll Up Rapid Rise Door Color Coated Galvanized Steel Material
|PVC high speed door/industrial rolling door
||Red, yellow, blue, white, full transparent, etc.
|At the top of the structure
||The chassis is made of 2mm thick galvanized steel plate. The surface of the 6mm thick steel plate is sprayed and processed into the color required by customers. The reel is installed in the inner reel, shaft end and bearing seat.
||2.0mm high quality cold rolled sheet steel structure, high quality baking finish and other processes
||PVC transparent window, thickness 1.5mm
||Mainly to play the role of rapid isolation, thus ensuring the quality of the workshop without dust, with insulation, insect proof, wind resistance, sound insulation, anti-odor and other functions.
|Fire protection Level
French standard NF-P92-503
Or German standard M2 DIN 4120 B1
radar sensor,photo sensor,air safety bag include
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4) Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5) Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.
6) Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
Industrial PVC High Speed Rolling Shutter Doors, Automatic Plastic Fabric Rapid Rolling up Door (HF-1041)
Product Use :
Internal/External rapid rolling door, used in high-frequency logistics channel. The door curtain wind resistant pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the working environment.
* Indoor, outdoor which requests resistant the wind/ temperature .
* Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
* The Industries In high request in environmental health.
