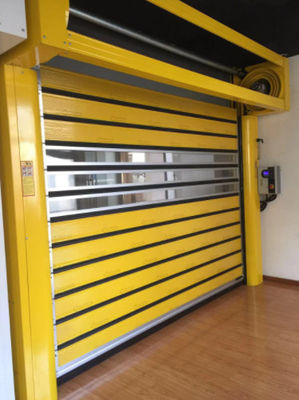

Aluminium Panel High Speed Spiral Door Shutter Lifting Heavy Duty Drum Roll Up 35m/S

Aluminium Panel High Speed Spiral Door Shutter Lifting Heavy Duty Drum Roll Up 35m/S

Product Details:

Place of Origin: CHINA
Brand Name: DESEO
Certification: CE/ISO9001
Model Number: HFD5000

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD 3000/UNIT
Packaging Details: plywood package
Delivery Time: 7-20 days
Payment Terms: T/T
Supply Ability: 200 unit per month
Get Best Price Contact Now

Detail Information

Feature: Anti-Theft Color: White / Grey / Sliver / Blue / Red / Customer-tailor
Thickness Of Material: Double-layer Aluminum Profile 0.8mm ~ 2.5mm Size: Customized Size
High Light:

35m/S High Speed Spiral Shutter Door


aluminium panel High Speed Spiral Door


0.8mm High Speed Spiral Shutter Door

Product Description

High Speed Spiral Doors are an excellent choice for an effective and flexible door system. These doors can adapt to any environment; commercial, industrial, you name it!

With a High Speed Spiral Door System, you are gifted exceptional security. Preventing tailgating and protecting your property when you are away. Our high speed spiral doors open around six times faster than similar sectional doors.


This style of door has been specifically for environments in which you have really intensive logistic movements. Being so quick, these doors are energy efficient, losing little heat every time you open them. As well as filtering out noise too and thus ideal for warehouses.


Insulated slats

Vision slats

Ventilated slats

Hood and motor covers

Classic RAL and custom color match powder coated finish


Double-walled 220mm aluminum slats

Integral weatherseal between the aluminum slats

Heavy-duty hinge system for door panel assembly

Durable powder coated steel side columns and head console (excludes US/R models)

Extension springs in side column


Technical Data:

Item Description
Mateiral Aluminum Alloy Profile(PU Sandwich optional) & Transparent PVC Section
Thickness of Material Double-layer Aluminum profile 0.8mm ~ 2.5mm
Thickness of Panel 40mm ~ 70mm
Foam Density 50kg / m3
Speed Open / Close to max : 2.5 / 0.7 m/s
Wind Resistance Beaufort scale 12 (35 m / s)
Color: White / Grey / Sliver / Blue / Red / Customer-tailor
Noise Level: < 60dB
Lifting way 90°Vertical Lift / Turbo Type / Ellipse Type
Max Dimension 5000*7500 MM
Heat preservation K 1.5W/(m2•K)
Drive System Brake Motor or Servo Motor
SEW / ABB Brake Motor, 220V 50HZ / 380V 50HZ, 0.75Kw, 1.1Kw,1.5Kw,2.2Kw
Control System Inverter Type or Servo Type
Service Life > 10 Years
Safety 1) Photocell Sensor
2) Airbag Installed at Door Edge Bottom (BUTTERFLY Pressure Wave Sensor)



Main Features:
High Speed,Automatic,security,heat preservation,durable.

Application Scope:
The industrial door is applied to the outdoor passage.
