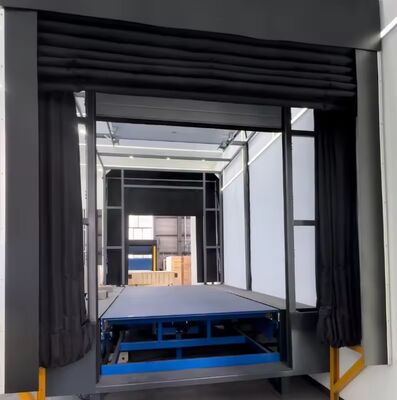

Wear-resistant Fabric Adjustable Loading System dock door shelter engineered for trucks Loading Bay Thermal Insulated Fixed Foam

Wear-resistant Fabric Adjustable Loading System dock door shelter engineered for trucks Loading Bay Thermal Insulated Fixed Foam

Product Description:

Dock Shelters are enclosures that seal the perimeter of the trailer to form a complete enclosure. This is achieved by applying pressure to the sides of the trailer using fabric curtains fitted with fiberglass stays.The dock shelter is designed to fill the space between the building wall and the truck, sealing the top, sides, and back of the transport vehicle to create an extension of the warehouse.

Dock shelters play an important role in the logistics and warehousing fields.

Dock shelters are utilized primarily in dock loading and unloading areas. It effectively blocks wind, rain, dust, and other elements, providing excellent protection for goods. The material is durable and straightforward to install. It can improve loading and unloading efficiency, reduce the risk of damage to goods, and ensure safe transfer and storage in various weather conditions.

Technical Parameters:

How to choose the type of Dock Shelters?


***Mechanical Dock Shelter
When truck touches dock to load goods,dock shelter can wrap the back of lorry to ensure a closeness and dust-proof environment.
Application Features:
1.It can cooperate with more vehicle types and requires less wall load-bearing capacity of the building.
2.Multiple choices that can meet your special needs.
3.Retractable frame structure.
Side and Top PVC Curtain:
1.The side and top curtain is made of 1mm thickness PVC fabric. The weight is 750g/m .
2.Breaking strength: 4000/4000 N/5cm
3.Tear strength: 580/500 N
Scalable Framework:
The dock shelter is made of galvanized steel whose cross section is 60*30mm.The front and the back frame are connected by retractable rod.It can retract when the truck is pushing and go back to origin when the truck leaves.
Positive PVC Curtains:
The front curtain is made of 3mm thickness PVC sheet.It has double reinforced nets inside.It has excel-lent crash resistance,flexibility and corrosion resistance performance.
Top curtain height:1000mm;Side curtain width:700mm

***Sponge Dock Shelter
It can offer high closeness function when there are uniform trucks.
This type is closed by the vehicle's entrusion, and it can provide effective seal and thermal insulation. It is compatible with vehicles of the same or similar sizes.
Application Features:
1.Suitable for door shelter applications which have strict requirements for insulation,the same vehicle type and more wall load-bearing capability.
2.We offer wide variety of Dock Seals design to suit different sizes of vehicle,such as:non-adjustable,adjustable,curtain hanging type,inflatable type etc.
Door Seal PVC Fabric:
There are self-extinguishing PVC curtains function, weight 800 g/m2,and on both sides of the dock seal has added pleated blinds can withstand lasting wear compression;
Structure and Sponges:
1.Electroplated steel liner or wood preservative liner,completely fit the wall inside the door seal compression sponge filled with high density of 30KG cubic;
2.liner sectional dimensions:300mm×300mm;

***Inflatable Dock Shelter
It is suitable for environment that requires high closeness.
Application Features:
It can cooperate with trucks of different size with good insulation effect.It is suitable for the applications which requires strict temperature scope,long docking process duration or the cold storage.
Structure and Figures:
1.It consists of 2 side inflatable PVC fabrics and 1 top inflatable PVC fabric.Air inflation should be done by air blower 3 phase,380V.There is weight recovery unit inside that realizes opening and closing.
2.Inflation time:15 seconds; Close time:15 seconds.

Packing and Shipping:

FAQ:

Q: What is your MoQ?
A: No limit. Accept order >=1 set
Q: What is the delivery time?
A: About 15-30 days
Q: What about your package?
A: Poly-wood box
Q: What kind of payment terms would you accept?
A: Usually we accept T/T, LC, Western Union, Credit Card etc. If you prefer other payment terms, please feel free to discuss with
us.
Q: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to us. Let's cooperate.
Q: How can i know the price exactly?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q: ls it difficult to install your door?
A: Easy to install. We have manual book and installation video for your reference.
Q: Do you produce other products?
A: We produce sectional garage door, industrial door, roll shutter door, high speed door.high speed spiral door,dock shelter,dock leveler etc.
