Cold Storage Insulated Sectional Overhead Door SUS304 Steel Panel Beaufort 11 Wind Resistant EPDM Sealing System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001:2008 |
| Model Number: | SD5300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 900-1500/UNIT |
| Packaging Details: | plywood package with moisture barrier |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 150 unit per month |
|
Detail Information |
|||
| Material: | SUS304 Stainless Steel, Aluminum Alloy | Panel Thickness: | 50mm |
|---|---|---|---|
| Panel Width: | 500mm | Core Material: | Polyurethane Foam 48kg/m3 |
| Sealing System: | EPDM Rubber All-Round Sealing | Wind Resistance: | Beaufort Scale 11, 28m/s |
| Heat Preservation: | 4.5W/m.h | Operation: | Electric, Remote, Manual |
| Sound Insulation: | 26 DB | Fire Retardation: | Class A |
| Service Life: | 10 Years | Max Dimension: | 12m X 8m |
| Surface Treatment: | Power Coating 30um | Guide Rail: | 2mm Galvanized Steel |
| Application: | Cold Storage, Warehouse, Factory, Food Processing | ||
| Highlight: | Cold storage insulated sectional door,SUS304 steel panel overhead door,Wind resistant EPDM sealing door |
||
Product Description

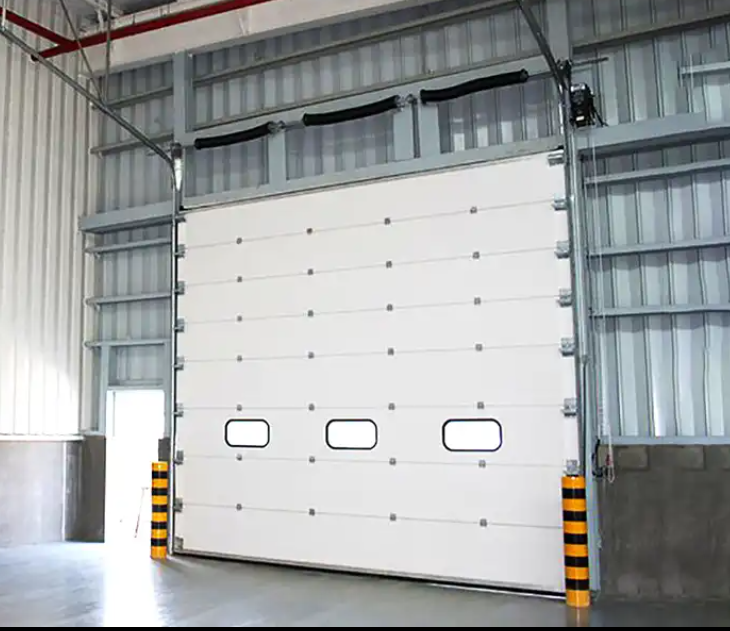

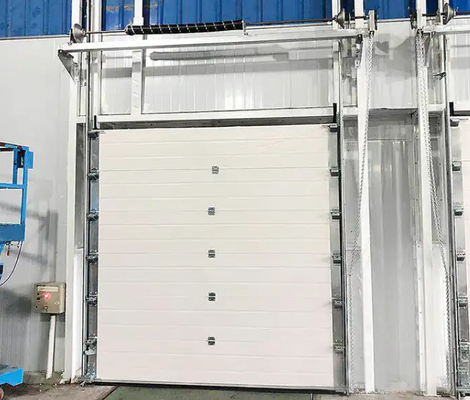

Cold Storage Insulated Sectional Overhead Door
The SD5300 cold storage sectional overhead door is purpose-built for temperature-controlled environments. Constructed with SUS304 stainless steel panels and a comprehensive EPDM sealing system, it maintains thermal integrity in freezer rooms, cold chain logistics centers, and food processing facilities.
Key Features
- SUS304 Stainless Steel Construction: Superior corrosion resistance and hygiene compliance, ideal for food-grade and pharmaceutical cold storage environments.
- EPDM All-Round Sealing: Complete perimeter sealing on both sides, top, bottom, and between door panels eliminates thermal bridging and prevents condensation.
- Beaufort 11 Wind Resistance (28m/s): Engineered for external installations in coastal and high-wind regions.
- 50mm Thick Insulated Panels: Enhanced thermal barrier minimizes cold loss and energy consumption in sub-zero environments.
- Class A Fire Retardation: Compulsory safety certification for cold storage and industrial facilities.
Technical Specifications
| Material | SUS304 Stainless Steel, Aluminum Alloy |
| Panel Thickness | 50mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Sealing System | EPDM Rubber All-Round (Top, Bottom, Sides, Panel Joints) |
| Guide Rail | 2mm Hot-Dip Galvanized Steel |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort Scale 11, 28m/s |
| Sound Insulation | 26 dB |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Opening Speed | 0.2-0.3m/s |
| Service Life | 10 years / 100,000 cycles |
| Balance System | Torsion Spring with Anti-Break Device |
Cold Storage Optimizations
- Rust-proof SUS304 panels suitable for high-humidity cold environments
- Optional heated guide rail system for sub-zero operation
- Rapid open/close to minimize cold air loss
- Finger-protection safety design on all panel joints
- Emergency manual chain hoist for power-off scenarios
Applications
Designed for cold storage warehouses, frozen food distribution centers, pharmaceutical cold chains, food processing plants, and any industrial facility requiring reliable thermal isolation in harsh weather conditions.
