High Speed 0.4m/s Insulated Sectional Overhead Door 42mm PU Sandwich Panel R-Value 13.73 Energy Efficient
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001:2008 |
| Model Number: | SD6100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 850-1200/UNIT |
| Packaging Details: | plywood package with protective film |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 unit per month |
|
Detail Information |
|||
| Material: | Galvanized Steel, Aluminum Alloy | Panel Thickness: | 42mm |
|---|---|---|---|
| Panel Width: | 500mm | Core Material: | Polyurethane Foam 48kg/m3 |
| R-Value: | 13.73 | Opening Speed: | 0.4m/s |
| Operation: | Electric, Remote, Manual | Heat Preservation: | 4.5W/m.h |
| Wind Resistance: | Beaufort Scale 11, 28m/s | Sound Insulation: | 24 DB |
| Fire Retardation: | Class A | Service Life: | 10 Years |
| Max Dimension: | 12m X 8m | Surface Treatment: | Powder Coating 30um |
| Application: | Industrial, Warehouse, Garage, Commercial | ||
| Highlight: | High Speed 0.4m/s Insulated Sectional Door,42mm PU Sandwich Panel Overhead Door,Energy Efficient R-Value 13.73 Sectional Door |
||
Product Description

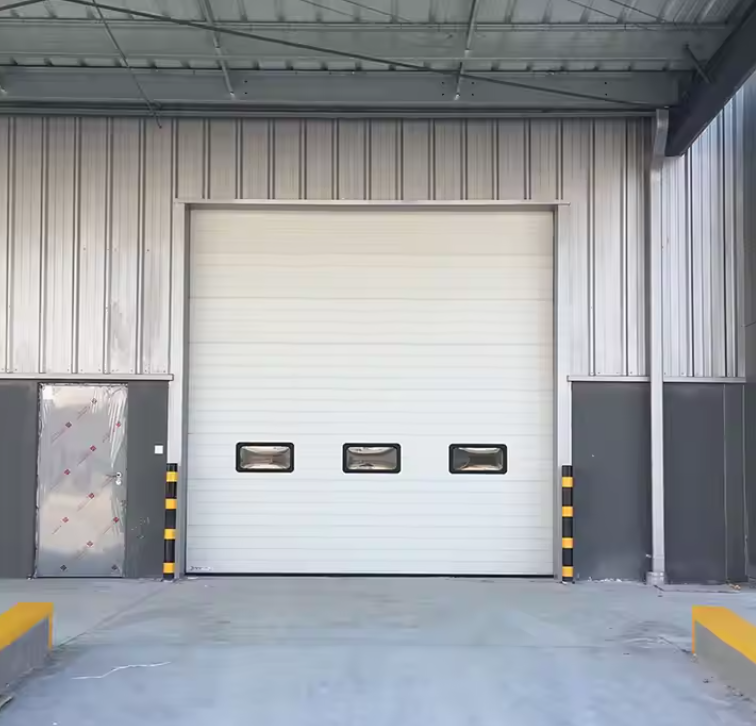

Energy Efficient High Speed Insulated Sectional Overhead Door
The SD6100 insulated sectional overhead door combines rapid 0.4m/s opening speed with industry-leading thermal performance. Designed for high-traffic industrial and commercial environments where both speed and energy efficiency are critical.
Key Features
- Industry-Leading R-Value 13.73: 42mm polyurethane foam sandwich panels deliver exceptional thermal insulation, reducing HVAC costs and maintaining stable indoor temperatures year-round.
- 0.4m/s High Speed Operation: Minimizes air exchange and heat loss during frequent open/close cycles, ideal for busy logistics centers and loading docks.
- 48kg/m3 High Density PU Core: Superior structural rigidity with excellent noise dampening at 24 dB sound insulation.
- Class A Fire Retardation: Meets stringent fire safety standards for industrial facilities.
- Beaufort 11 Wind Resistance: Engineered to withstand wind speeds up to 28m/s for exposed installations.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 42mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| R-Value | 13.73 |
| Opening Speed | 0.2-0.4m/s |
| Guide Rail Thickness | 2mm Galvanized Steel |
| Surface Treatment | Powder Coating 30um |
| Heat Preservation | 4.5W/m.h |
| Sealing | EPDM Rubber All-Round Sealing |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Emergency Operation | Manual Hoist Chain |
Safety Systems
- Finger-protection (pinch-resistant) panel joint design
- Airbag safety edge for obstacle detection
- Door anti-fall device
- Wire rope anti-break protection
- Torsion spring balance system with spring brake device
Applications
Ideal for logistics warehouses, distribution centers, manufacturing plants, automotive workshops, and commercial garages where high-traffic access and thermal efficiency are priorities.
