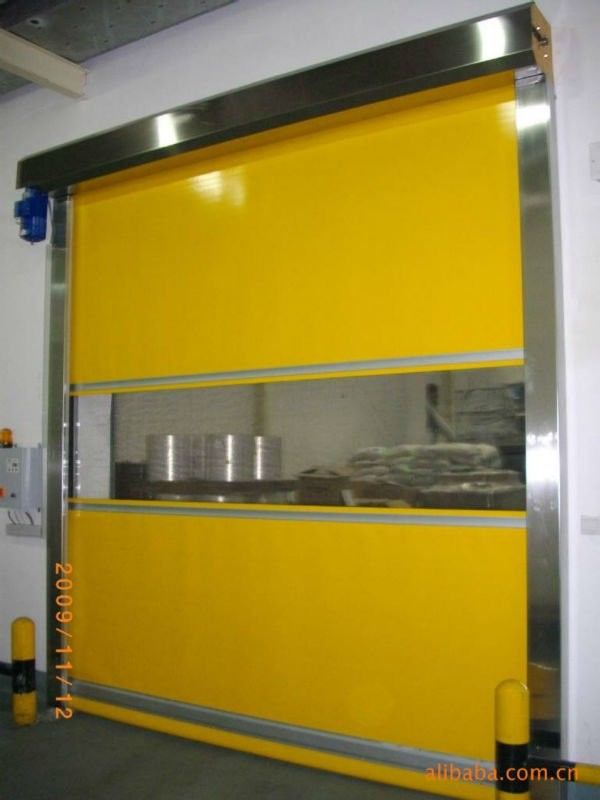

220V/380V 50Hz High Speed Roll Up Freezer Doors Break Prevention High Frequency Operation
|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 UNIT|
|Packaging Details:||plywood package|
|Delivery Time:||7-20 days|
|Supply Ability:||200 unit per month|
|Structural Material::||1.5mm Thick Cole Rolled Steel Or 1.5mm Thick Staninless Steel.||Surface Finishing::||Finished|
|Name:||High Speed Door|
high speed roll up freezer doors,
cold storage roll up doors
- Compact construction saves valuable space
- A curtain tension system assures the perfectly controlled opening
- and closing movement ,and permanently tensions the curtain in all
|Technology Category:||Technical Paramerers|
|Useage:||Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places.|
|Size:||Maximum size:W6000*H6000mm exceed this range according to the site specific production process.|
|Wind strength:||Wind resistance of up to 1176pa.|
|Color curtains:||Red , orange , yellow , green , blue , black , gray ,transparent.|
|Structural material:||1.5mm thick cole rolled steel or 1.5mm thick staninless steel.|
|Drive System:||220V/380V 50Hz IP55 power 0.55KW-6.5KW|
|Door Control System:||PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder.|
|Optional:||Geomagnetism,radar,light curtain,infrared,remote control or by hand switch.|
We offers a full line of refrigeration room doors for walk-in coolers to drive-in freezers. Our high speed doors
for the cold storage and freezer industries have the ability to maintain temperatures as low as -22 degrees. The
refrigeration room doors open and close at high speed and soft bottom edges for safety purposes.
Heaters and blowers can also be installed to freezer doors to prevent condensation that could cause dangerous icing
on the floors.
We offers the most extensive line of durable and dependable refrigeration room doors which can be used for a variety of
applications in many different industries. With our many years of experience and excellent customer service, we can
provide solutions to meet any of your material handling needs.
radar sensor,photo sensor,air safety bag include
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4)Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
