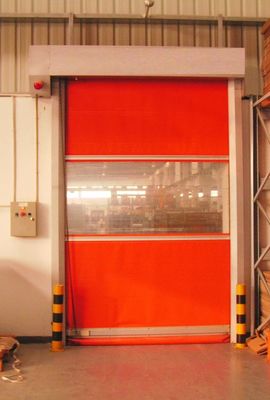

0.5-1.5m/S Opening High Speed PVC Door Wind Resistance Easy Operating Safty Rapid Door
Product Details:
Place of Origin: | CHINA |
Brand Name: | DESEO |
Certification: | CE/ISO9001 |
Model Number: | HSD2000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | USD 1000/UNIT |
Packaging Details: | plywood package |
Delivery Time: | 7-20 days |
Payment Terms: | T/T |
Supply Ability: | 200 unit per month |
Detail Information |
|||
Surface Finishing:: | Finished | Apperance: | Luxury |
---|---|---|---|
Structural Material:: | 1.5mm Thick Cole Rolled Steel Or 1.5mm Thick Staninless Steel. | Opening&close Speed:: | 0.5-1.5m/s |
Highlight: | high speed roll up freezer doors,cold storage roll up doors |
Product Description
high speed roll up door reduces cooling energy costs. variable frequency drive system provided soft start/ soft stop.
insulated reinforced vinyl curtain endures cold temperatures
soft bottom with safety edge,releases upon impact and auto resets
retention guides improves curtain stability and durability
aluminum guides with integrated photoeyes,wear strips and fabric loop seals
standard steel roll cover and optional operator hood with white finish.
optional air curtain system,heated or non-heated
suitable for applications up to 13' wide and 18'6" high.
Technology Category: | Technical Paramerers |
Useage: | Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places. |
Size: | Maximum size:W6000*H6000mm exceed this range according to the site specific production process. |
Wind strength: | Wind resistance of up to 1176pa. |
Opening&close speed: | 0.5-1.5m/s |
Color curtains: | Red , orange , yellow , green , blue , black , gray ,transparent. |
Structural material: | 1.5mm thick cole rolled steel or 1.5mm thick staninless steel. |
Drive System: | 220V/380V 50Hz IP55 power 0.55KW-6.5KW |
Door Control System: | PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder. |
Optional: | Geomagnetism,radar,light curtain,infrared,remote control or by hand switch. |
Our product are exported mainly to Europe, Americal, UAE,South Africa. We has developed very quickly for its continuous products innovation,wide products range,very competitive price, on-time deliveries,extensive marketing and strong techincal support.
Features
1)Safety
radar sensor,photo sensor,air safety bag include
2)Tightness
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
3)Power
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4)Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5)Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.
6)Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
