Remote Control High Speed Roll Up PVC Doors 1.5m/s Industrial Rapid Door
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001 |
| Model Number: | HFD3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 2000/UNIT |
| Packaging Details: | plywood package |
| Delivery Time: | 7-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 unit per month |
|
Detail Information |
|||
| Wind Strength:: | Wind Resistance Of Up To 1176pa. | Opening&close Speed:: | 0.5-1.5m/s |
|---|---|---|---|
| Apperance: | Luxury | Name: | High Speed Roll Up Freezer Doors |
| High Light: | Remote Control High Speed Freezer Door,Industrial Cold Storage High Speed Freezer Door,1.5m/s High Speed Roll Up Doors |
||
Product Description
Rapid acting
With and opening speed of up to 1m/second, fast cycles times mean the door opens quickly, remains open for the minimum time required, then closes fast, to maximise productivity and energy savings.
Strength
The insulated high speed door is designed to operate in areas where high pressure is present. With wind pressure rating of cover 50 pascals the door can be used in process areas where positive pressure is present.
| Technology Category: | Technical Paramerers |
| Useage: | Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places. |
| Size: | Maximum size:W6000*H6000mm exceed this range according to the site specific production process. |
| Wind strength: | Wind resistance of up to 1176pa. |
| Opening&close speed: | 0.5-1.5m/s |

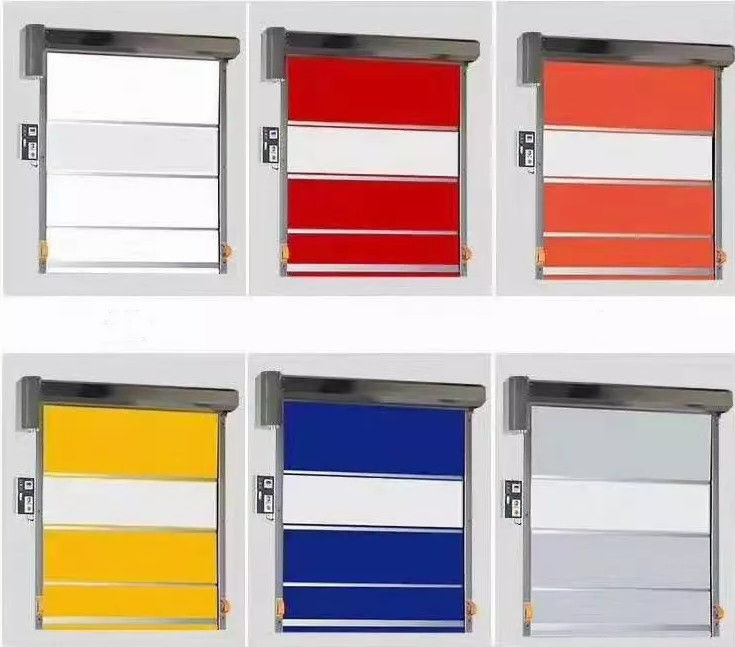

| Color curtains: | Red , orange , yellow , green , blue , black , gray ,transparent. |
| Structural material: | 1.5mm thick cole rolled steel or 1.5mm thick staninless steel. |
| Drive System: | 220V/380V 50Hz IP55 power 0.55KW-6.5KW |
| Door Control System: | PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder. |
| Optional: | Geomagnetism,radar,light curtain,infrared,remote control or by hand switch. |
Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.
3. High-level automation
Automatic radar or other devices can be equipped, realizing auto control of the door. This enhances automation level and work efficiency.
4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.
5. Effective insulation
Benefiting from fast opening and closing, it can reduce the air flow between indoor and outdoor and prevent dust from entering the room. At the same time, energy is saved by reducing thermal conduction.
