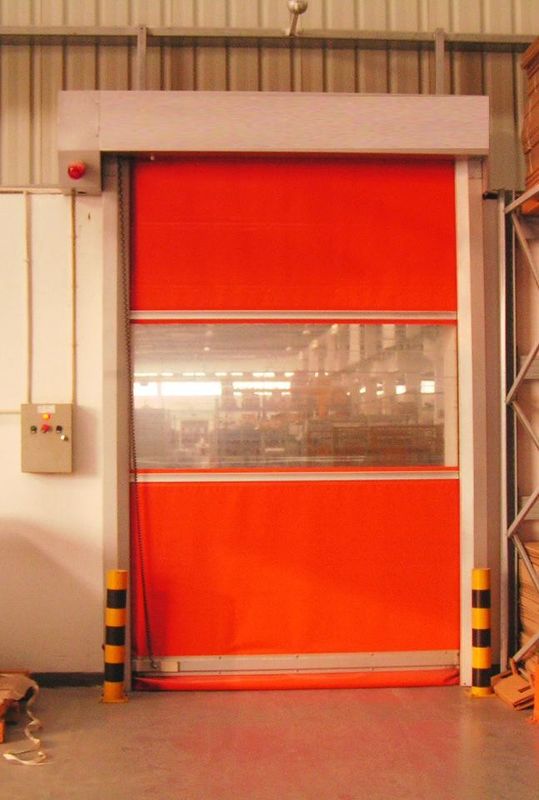

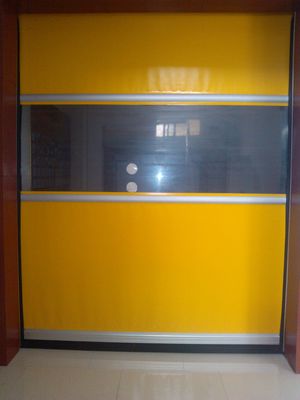

Self Repair Clean Room High Speed PVC Door 1.5mm Stainless Steel Rapid Shutter Rapid Roller Doors
Product Details:
Place of Origin: | CHINA |
Brand Name: | DESEO |
Certification: | CE/ISO9001 |
Model Number: | HFD3000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | USD 2000/UNIT |
Packaging Details: | plywood package |
Delivery Time: | 7-20 days |
Payment Terms: | T/T |
Supply Ability: | 200 unit per month |
Detail Information |
|||
Opening&close Speed:: | 0.5-1.5m/s | Color: | White, Red, Yellow, Blue, Orange Etc. |
---|---|---|---|
Surface Finishing:: | Finished | Name: | High Speed Door |
Highlight: | Cold Storage High Speed Freezer Door,1.5mm Cold Storage Freezer Door,stainless steel Cold Storage Freezer Door |
Product Description
We offers a full line of refrigeration room doors for walk-in coolers to drive-in freezers. Our high speed freezer doors
for the cold storage and freezer industries have the ability to maintain temperatures as low as -22 degrees. The
refrigeration room doors open and close at high speed and soft bottom edges for safety purposes.
We offers the most extensive line of durable and dependable refrigeration room doors which can be used for a variety of
applications in many different industries. With our many years of experience and excellent customer service, we can
provide solutions to meet any of your material handling needs.
Technology Category: | Technical Paramerers |
Useage: | Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places. |
Size: | Maximum size:W6000*H6000mm exceed this range according to the site specific production process. |
Wind strength: | Wind resistance of up to 1176pa. |
Opening&close speed: | 0.5-1.5m/s |

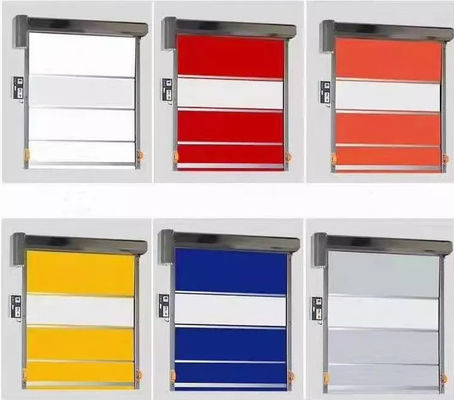

Color curtains: | Red , orange , yellow , green , blue , black , gray ,transparent. |
Structural material: | 1.5mm thick cole rolled steel or 1.5mm thick staninless steel. |
Drive System: | 220V/380V 50Hz IP55 power 0.55KW-6.5KW |
Door Control System: | PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder. |
Optional: | Geomagnetism,radar,light curtain,infrared,remote control or by hand switch. |
Our product are exported mainly to Europe, Americal, UAE,South Africa. We has developed very quickly for its continuous products innovation,wide products range,very competitive price, on-time deliveries,extensive marketing and strong techincal support.
Features
1)Safety
radar sensor,photo sensor,air safety bag include
2)Tightness
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
3)Power
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4)Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5)Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.
6)Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
